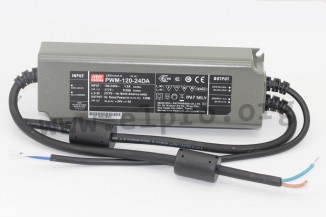

Mean Well LED driver series PWM-120

LED drivers in a plastic case (IP67) with a PWM output voltage, 120W, protection class II and a universal input. These devices comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C and are suitable for LED lightning applications. They are protected against overvoltage, short circuit, overtemperature as well as overload (auto recovery) and have a 3 in 1 dimming function (0 to 10V DC, 10V PWM, potentiometer), a DALI (PWM-120_DA) resp. a DALI 2.0 interface (PWM-120_DA2) as well as a built-in active PFC function. We offer the following types of this Mean Well series: PWM-120-12DA, PWM-120-12DA2, PWM-120-24DA and PWM-120-24DA2.

single output
output: 120W
input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
maximal input inrush current: 60A
withstand voltage I/P-O/P: 3750V AC
operating temperature: -40 to +90°C
weight: 970g
