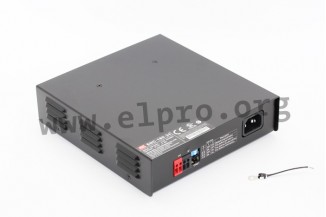

Mean Well charger series ENC-180

Battery chargers in a rugged housing with 180W, a universal input, a built-in 3 stage programmable charging curve and a temperature compensation function. These devices have a built-in active PFC function and are protected against overload, voltage reversal, overtemperature, overvoltage as well as short circuit. They have a fanless design, are suitable for lead-acid as well as Li-ion batteries and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: ENC-180-12, ENC-180-24 and ENC-180-48.

single output
output: 172,8W
input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
AC current: 0,95A
maximal input inrush current: 70A
withstand voltage I/P-O/P: 3000V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 500V AC
operating temperature: -30 to +70°C
dimensions: 192x178x45,5mm
weight: 1150g
