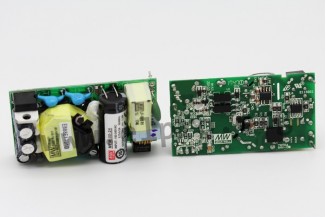

Mean Well power supply series MFM-30

Switching power supplies in an open frame type housing with 30W, a universal input, insulation class II and a low no-load power. These devices are suitable for medical applications and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for PCB mounting and comply with EN60601-1. We offer the following types of this Mean Well series: MFM-30-3.3, MFM-30-5, MFM-30-12, MFM-30-15, MFM-30-24 and MFM-30-48.

single output
output: 19,8 to 31,2W
input voltage: 80 to 264V AC (47 to 63Hz)
maximal input inrush current: 45A
no-load power: <0,075W
overload protection: 115 to 165%
withstand voltage I/P-O/P: 4000V AC
operating temperature: -40 to +85°C
weight: 53g
