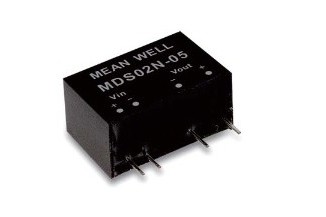

Mean Well DC/DC converter series MDS02

Unregulated DC/DC converters in a SIL7 housing with 2W, a low patient leakage current (<2µA) and a high efficiency (up to 85%). These devices are suitable for medical technology applications (1xMOOP/2xMOPP...

Mean Well DC/DC converter series MDS02

Unregulated DC/DC converters in a SIL7 housing with 2W, a low patient leakage current (<2µA) and a high efficiency (up to 85%). These devices are suitable for medical technology applications (1xMOOP/2xMOPP) and are protected against short circuit (max. 3s). They are inexpensive and comply with ES60601-1, EN55011 class B as well as EN61000-4-2. We offer the following types of this Mean Well series: MDS02L-05, MDS02L-12, MDS02L-15, MDS02M-05, MDS02M-12, MDS02M-15, MDS02N-05, MDS02N-12 and MDS02N-15.

  • single output
  • output: 2W
  • output voltage tolerance: ±5%
  • maximal ripple and noise: 75mVpp
  • withstand voltage: 6000/4200V DC
  • operating temperature: -40 to +85°C
  • weight: 4,2g
