Mean Well DC/DC converter series MDS01

Unregulated DC/DC converters in a SIL7 housing with 1W and a low patient leakage current (<2µA). These low-cost devices are suitable for medical technology applications (1xMOPP/2xMOPP) and are protected ag...

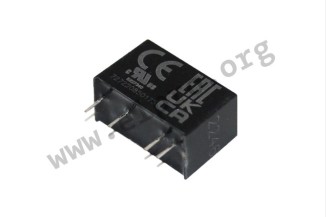

Mean Well DC/DC converter series MDS01

Unregulated DC/DC converters in a SIL7 housing with 1W and a low patient leakage current (<2µA). These low-cost devices are suitable for medical technology applications (1xMOPP/2xMOPP) and are protected against short circuit (max. 3s). They have a high efficiency (up to 82%) and are suitable for direct PCB mounting. We offer the following types of this Mean Well series: MDS01L-03, MDS01L-05, MDS01L-12, MDS01L-15, MDS01M-05, MDS01M-12, MDS01M-15, MDS01N-05, MDS01N-12 and MDS01N-15.

  • single output
  • output: 1W
  • output voltage tolerance: ±5%
  • maximal ripple and noise: 75mVpp
  • withstand voltage: 6000/4200V DC
  • operating temperature: -40 to +85°C
  • weight: 4,2g
> More
Data Sheet
