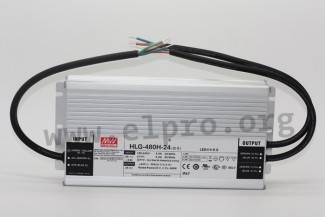

Mean Well LED driver series HLG-480H

LED drivers in a metal housing (IP67) with a constant current, a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer) and 480W. These devices compliant with EN61347-2-13, EN61347-1, EN55015, EN61547, EN61000-3-2 class C as well as EN61000-3-3 and are protected against overload (auto recovery), short circuit, overtemperature as well as overvoltage. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: HLG-480H-24B, HLG-480H-30B, HLG-480H-36B, HLG-480H-42B, HLG-480H-48B and HLG-480H-54B.

single output
output: 478,8 to 480,6W
input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
maximal input inrush current: 35A
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -40 to +90°C
dimensions: 262x125x43,8mm
weight: 2800g
