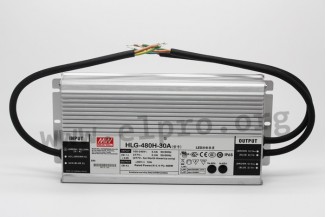

Mean Well LED driver series HLG-480H

LED drivers in an aluminium housing (IP65) with a constant current, a built-in potentiometer for adjusting the output voltage / current limitation and 480W. These devices are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage, are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. They have a built-in active PFC function, are not dimmable and comply with EN61000-3-2 class C. We offer the following types of this Mean Well series: HLG-480H-24A, HLG-480H-30A, HLG-480H-36A, HLG-480H-42A, HLG-480H-48A and HLG-480H-54A.

single output
output: 478,8 to 480,6W
input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
maximal input inrush current: 35A
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -40 to +90°C
dimensions: 262x125x43,8mm
weight: 2800g
