Recom LED driver series RACT25

LED drivers in a plastic housing (IP20) with 25W, a constant current, protection class II, screw terminals and a universal input. These devices have a TRIAC dimmer (phase-cut dimmer) and are protected against overloa...

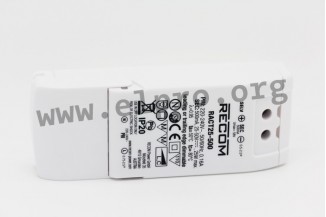

Recom LED driver series RACT25

LED drivers in a plastic housing (IP20) with 25W, a constant current, protection class II, screw terminals and a universal input. These devices have a TRIAC dimmer (phase-cut dimmer) and are protected against overload, overvoltage as well as short circuit. They are not dimmable and comply with EN55015, EN61347-1, EN61347-2-13, IEC61347-1 as well as IEC61347-2-13. We offer the following types of this Recom series: RACT25-500, RACT25-700 and RACT25-1050.

  • single output
  • output: 25W
  • input voltage: 198 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 5A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -20 to +50°C
  • dimensions: 120x45x28mm
  • weight: 100g
> More
Data Sheet
