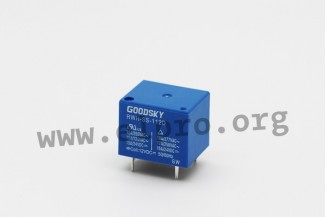

PCB relays series RWH by Goodsky

These PCB relays are characterized by a high switching current up to 15A in a small size and have an UL class F insulation. The relays are suitable for use under harsh conditions with high temperature and vibration...

PCB relays series RWH by Goodsky

These PCB relays are characterized by a high switching current up to 15A in a small size and have an UL class F insulation. The relays are suitable for use under harsh conditions with high temperature and vibration. They meet the glow wire requirements IEC 60335-1 for home appliances. We are offering the following types by Goodsky: RWH-SS-105D 5V, RWH-SS-112D 12V and RWH-SS-124D 24V.

* contact: SPDT contact
* material: AgSnO2
* max. switching current: 15A
* max. switching voltage: 240V AC/110V DC
* max. switching power: 3.000VA, 360W
* operate/release time: 10/5ms
* testing voltage
coil/contact (1min.): 1.000V AC
open contacts (1min.): 500V AC
* min. lifetime
mechanical: 107operations
electrical: 105 operations
* operating temperature: -30 to +85°C
* weight approx.: 9.0g

> More
Data Sheet
