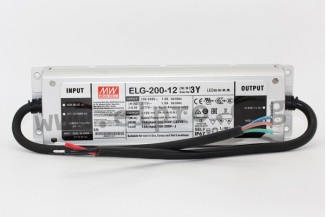

Mean Well LED driver series ELG-200

LED drivers in a metal housing (IP67) with a constant current, 200W and a protective earth conductor PE. These devices comply with 6kV surge immunity level, EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and are suitable for LED lighting applications. They have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. We offer the following types of this Mean Well series: ELG-200-12-3Y, ELG-200-24-3Y, ELG-200-36-3Y, ELG-200-42-3Y, ELG-200-48-3Y and ELG-200-54-3Y.

single output
output: 192 to 201,6W
input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
maximal input inrush current: 60A
no-load power: <0,5W
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -40 to +90°C
dimensions: 244x71x37,5mm
weight: 1220g
