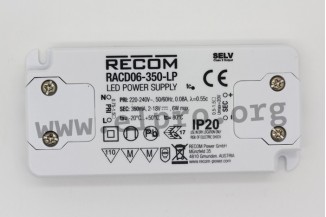

Recom LED driver series RACD06-LP

LED drivers in a plastic housing (IP20) with 6W, a constant current, a universal input and a low profile (11mm). These devices are suitable for LED lighting applications and are protected against overload (auto re...

Recom LED driver series RACD06-LP

LED drivers in a plastic housing (IP20) with 6W, a constant current, a universal input and a low profile (11mm). These devices are suitable for LED lighting applications and are protected against overload (auto recovery) as well as short circuit. They are not dimmable and comply with EN55015, EN61347-1, EN61347-2-13, IEC61347-1 as well as IEC61347-2-13. We offer the following types of this Recom series: RACD06-350-LP, RACD06-500-LP and RACD06-700-LP.

  • single output
  • output: 6W
  • input voltage: 198 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 11A
  • no-load power: <0,4W
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -20 to +50°C
  • dimensions: 98x46x11mm
  • weight: 45g
> More
Data Sheet
