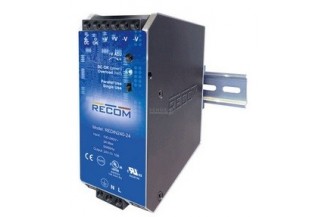

Recom DIN rail power supply series REDIN240

DIN rail switching power supplies in an enclosed housing with 240W, an LED indicator, screw terminals (touch guard) and a universal input. These devices have a built-in active PFC function and are protected against overload, overtemperature, short circuit as well as overvoltage. They have a high efficiency and comply with EN60950-1 as well as EN55022/24. We offer the following types of this Recom series: REDIN240-24 and REDIN240-48.

• single output
• output: 240W
• input voltage: 85 to 264V AC (47 to 63Hz)
• maximal input inrush current: 32A
• peak power: 150%
• leakage current: <3,5mA
• withstand voltage I/P-O/P: 3000V AC
• withstand voltage I/P-FG: 2500V AC
• withstand voltage O/P-FG: 500V AC
• operating temperature: -25 to +70°C
• weight: 810g
