Recom DC/DC converter series RP20-F

These converter modules in 2x1- housing with six-sides continuous shield are suitable for direct PCB mounting. Their input voltage ratio is 2:1 and there is no minimum load required. The isolation is 1.6kV AC. W...

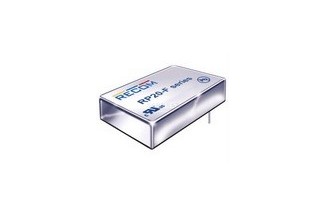

Recom DC/DC converter series RP20-F

These converter modules in 2x1- housing with six-sides continuous shield are suitable for direct PCB mounting. Their input voltage ratio is 2:1 and there is no minimum load required. The isolation is 1.6kV AC. We are offering the following type by Recom: RP20-2405SF.

  • single output
  • output: 20W
  • voltage accuracy (load 100%): ±1%
  • maximal ripple & noise: 75mVpp
  • operating temperature: -40 to +70°C
  • weight: 27g
> More
Data Sheet
Showing 1 - 1 of 1 product
  • Product Stock Unit price Volume discounts
  • Recom
    DC/DC-converter modules series RP20-2405SF
    59,09 €
    109062 RP20-2405SF RP20-2405SF
    59,09 €

    More
    Stock: 401
Showing 1 - 1 of 1 product
