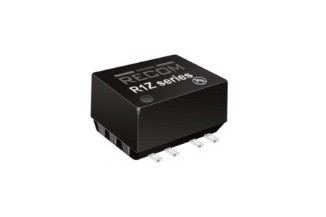

SMD DC/DC converter modules series R1Z

They have a SMD housing and are suitable for direct PCB mounting. The modules are characterized by toroidal magnetics and have got a regulated output. Their efficiency is typ. 60%. We are offering the followi...

SMD DC/DC converter modules series R1Z

They have a SMD housing and are suitable for direct PCB mounting. The modules are characterized by toroidal magnetics and have got a regulated output. Their efficiency is typ. 60%. We are offering the following types by Recom: R1Z-0505, R1Z-0505/P, R1Z-0505/HP, and R1Z-0505/P-R.

• output: 1 Watt
• single output
• output voltage tolerance, max.: ±2%
• ripple & noise, max.: 100mVpp
• withstand voltage: 1000V DC
• operating temperature: -40 to +70°C
• weight: 1.6g

• R1Z-_: 1kV DC isolation
• R1Z-_/H: 2kV DC isolation
• R1Z_/P: continuous short circuit protection

> More
Data Sheet
--
