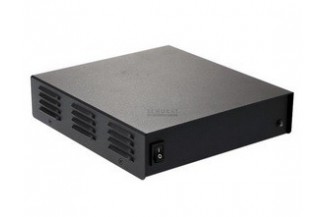

Mean Well charger series ENP-120

Desktop type battery chargers in a compact housing (7" width) with 120W, a universal input, energy efficiency Level VI and a low no-load power. These devices have a built-in active PFC function and are protected against overload, overvoltage as well as short circuit. They have a fanless design and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: ENP-120-12, ENP-120-24 and ENP-120-48.

single output
output: 119 to 121W
input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
maximal input inrush current: 65A
no-load power: <0,15W
leakage current: <3,5mA
overload protection: 110 to 125%
withstand voltage I/P-O/P: 3000V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 500V AC
operating temperature: -30 to +70°C
weight: 980g
