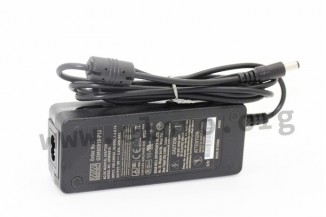

Mean Well desktop power supply series GSM60B

Desktop switching power supplies with 60W, insulation class II, energy efficiency Level V/VI, an LED indicator for power on, a low no-load power (<0,1W) and a universal input. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, overtemperature, overvoltage as well as short circuit. They have a service life of more than 95.000 hours and comply with EN60601-1, EN60601-1-11, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: GSM60B05-P1J, GSM60B07-P1J, GSM60B09-P1J, GSM60B12-P1J, GSM60B15-P1J, GSM60B18-P1J, GSM60B24-P1J and GSM60B48-P1J.

single output
output: 30 to 60W
input voltage: 80 to 264V AC (47 to 63Hz), 120 to 370V DC
maximal input inrush current: 65A
input plug: C8 (IEC320-C8)
output plug: 2,1x5,5mm
operating temperature: -30 to +60°C
weight: 320g

> More

Data Sheet
