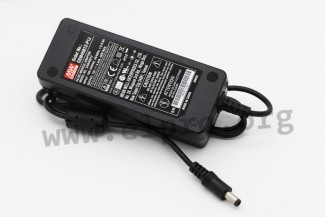

Mean Well desktop power supply series GSM40B

Desktop switching power supplies with 40W, a universal input, insulation class II and energy efficiency Level V (GSM40B12-P1J/GSM40B15-P1J/GSM40B18-P1J/GSM40B24-P1J/GSM40B48-P1J) / energy efficiency Level VI (GSM40B05-P1J/GSM40B07-P1J/GSM40B09-P1J). These devices are suitable for medical technology applications, are protected against overload, overvoltage as well as short circuit and comply with EN60601-1, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: GSM40B05-P1J, GSM40B07-P1J, GSM40B09-P1J, GSM40B12-P1J, GSM40B15-P1J, GSM40B18-P1J, GSM40B24-P1J and GSM40B48-P1J.

single output
output: 25 to 40W
input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
maximal input inrush current: 65A
input plug: C8 (IEC320-C8)
output plug: 2,1x5,5mm
operating temperature: -30 to +60°C
weight: 290g

> More

Data Sheet
