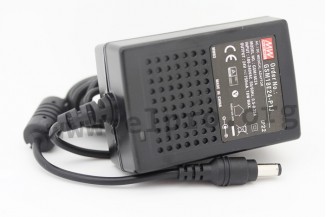

Mean Well plug-in power supply series GSM18E

Plug-in switching power supplies in a plastic housing (UL94V-0) with 18W, a europlug, a universal input, insulation class II, energy efficiency Level V/VI, an LED indicator for power on and a low no-load power. These devices are suitable for medical technology applications (2xMOPP) and comply with EN60601-1, EN60601-1-11, EN55011 class B, EN61000-3-2 class A as well as EN61000-3-3. They have a very high reliability and are protected against overload (auto recovery), overvoltage as well as short circuit. We offer the following types of this Mean Well series: GSM18E05-P1J, GSM18E07-P1J, GSM18E09-P1J, GSM18E12-P1J, GSM18E15-P1J, GSM18E18-P1J, GSM18E24-P1J and GSM18E48-P1J.

single output
output: 15 to 18W
input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
maximal input inrush current: 50A
no-load power: <0,1W
input plug: Euro
output plug: 2,1x5,5mm coaxial
operating temperature: -25 to +60°C
weight: 200g
