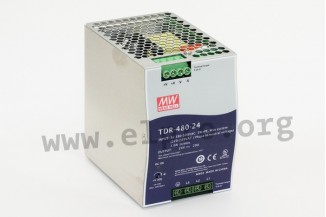

Mean Well DIN rail power supply series TDR-480

Switching power supplies in a slim housing (85,5mm width) with 480W, a three-phase input and screw terminals (touch guard). These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for DIN rail mounting, have a fanless design and comply with EN50082-2, EN61000-6-2, EN62368-1, EN55032 class B, EN61204-3 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: TDR-480-24 and TDR-480-48.

single output
output: 480W
input voltage: 340 to 550V AC (47 to 63Hz), 480 to 780V DC
maximal input inrush current: 50A
leakage current: <3,5mA
overload protection: 105 to 130%
withstand voltage I/P-O/P: 3000V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 500V AC
operating temperature: -30 to +70°C
weight: 1510g
