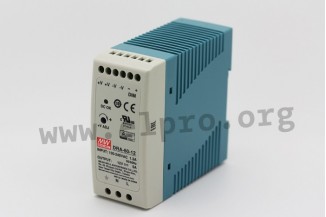

Mean Well DIN rail power supply series DRA-60

Switching power supplies in an enclosed housing with 60W, an LED indicator for power an, a universal input and screw terminals (touch guard). These devices are suitable for DIN rail mounting and are protected against overload (auto recovery), short circuit as well as overvoltage. They have an adjustable output voltage as well as an adjustable output current and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: DRA-60-12 and DRA-60-24.

single output
output: 60W
input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
maximal input inrush current: 60A
overload protection: 95 to 108%
withstand voltage I/P-O/P: 3000V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 500V AC
operating temperature: -30 to +70°C
weight: 300g
