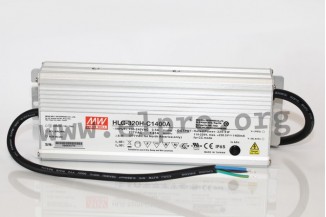

Mean Well LED driver series HLG-320H-C

LED drivers in a metal housing (IP65) with a constant current, 320W and a built-in potentiometer for adjusting the output current. These devices are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage, are suitable for LED lighting applications and are not dimmable. They comply with EN61347-2-13, EN61347-1, EN61000-3-2 class C as well as EN55015 and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-320H-C700A, HLG-320H-C1050A, HLG-320H-C1400A, HLG-320H-C1750A, HLG-320H-C2100A, HLG-320H-C2800A and HLG-320H-C3500A.

single output
output: 299,6 to 320,6W
input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
maximal input inrush current: 70A
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -40 to +85°C
dimensions: 252x90x43,8mm
weight: 1880g
