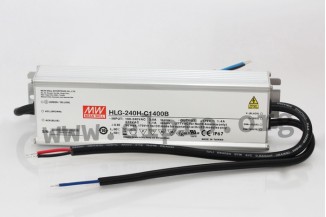

Mean Well LED driver series HLG-240H-C

LED drivers in a metal housing (IP67) with a constant current, a 240W and a 3 in 1 dimming function (0 to 10V DC, 10V PWM, potentiometer). These devices comply with EN61347-2-13, EN61347-1, EN61000-3-2 class C as well as EN55015 and are suitable for LED lighting applications. They are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and have a built-in active PFC function. We offer the following types of this Mean Well series: HLG-240H-C700B, HLG-240H-C1050B, HLG-240H-C1400B, HLG-240H-C1750B and HLG-240H-C2100B.

single output
output: 249,9 to 250,6W
input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
maximal input inrush current: 75A
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -40 to +90°C
dimensions: 244,2x68x38,8mm
weight: 1300g
