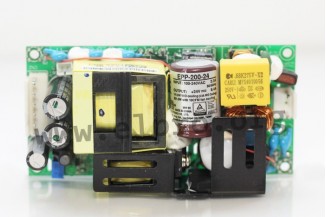

Mean Well power supply series EPP-200

Switching power supplies in a 4"x2" housing (open frame) with 140W resp. 200W with forced air (10cfm), a low no-load power (<0,5W), a built-in auxiliary output (12V/0,5A) and a pin strip connection for nylon crimp terminals. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are very efficient and comply with UL/EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: EPP-200-12, EPP-200-15, EPP-200-24, EPP-200-27 and EPP-200-48.

single output
output: 200,4 to 202,5W
input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
maximal input inrush current: 60A
leakage current: <0,75mA
overload protection: 110 to 140%
withstand voltage I/P-O/P: 3000V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 500V AC
operating temperature: -30 to +70°C
weight: 190g
