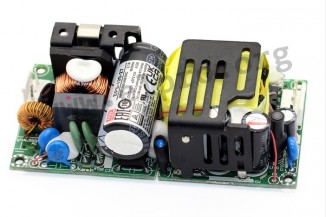

Mean Well power supply series EPS-120

Switching power supplies in a compact 4"x2" housing (open frame) with 120W (10cfm forced air), a universal input and a pin strip connection for nylon crimp terminals. These devices are suitable for an operating altitude of up to 5000m and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a low no-load power (<0,3W) and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: EPS-120-12, EPS-120-15, EPS-120-24, EPS-120-27 and EPS-120-48.

single output
output: 120 to 121,5W
input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
maximal input inrush current: 60A
leakage current: <0,75mA
overload protection: 115 to 150%
withstand voltage I/P-O/P: 3000V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 500V AC
operating temperature: -30 to +70°C
weight: 150g
