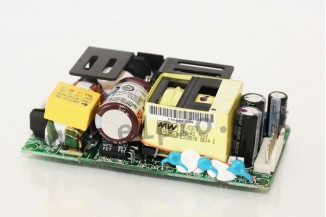

Mean Well power supply series RPS-200

Switching power supplies in an open frame housing with 140W convection resp. 200W with forced air (10cfm), a universal input and a pin strip connection for nylon crimp terminals. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a service life of up to 65.000 hours and comply with EN60601-1, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RPS-200-12, RPS-200-15, RPS-200-24, RPS-200-27 and RPS-200-48.

single output
output: 200,4 to 202,5W
input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
maximal input inrush current: 30A
leakage current: <190µA (earth) / <100µA (touch)
overload protection: 110 to 140%
withstand voltage I/P-O/P: 4000V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -30 to +70°C
weight: 190g
