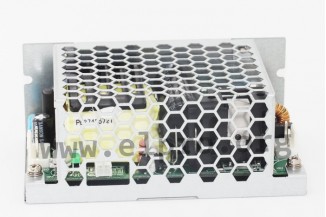

Mean Well power supply series RPS-120-C

Switching power supplies in an enclosed 4"x2" housing (10cfm forced air), a universal input, a low no-load power (<0,3W) and a pin strip connection for nylon crimp terminals. These devices are suitable for medical technology applications (2xMOPP) and comply with EN60601-1, EN60335-1, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. They are suitable for an operating altitude of up to 4000m and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. We offer the following types of this Mean Well series: RPS-120-12-C, RPS-120-15-C, RPS-120-24-C, RPS-120-27-C and RPS-120-48-C.

single output
output: 120 to 121,5W
input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
maximal input inrush current: 60A
leakage current: <150µA (earth) / <80µA (touch)
overload protection: 115 to 150%
withstand voltage I/P-O/P: 4000V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -30 to +70°C
weight: 240g
