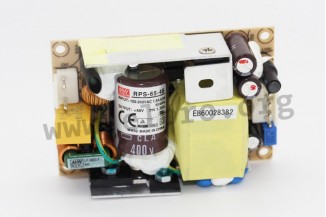

Mean Well power supply series RPS-65

Switching power supplies in a 3"x2" housing (open frame) with 65W, a universal input and a pin strip connection for nylon crimp terminals. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a low no-load power (<0,1W) and comply with EN60601-1, EN60335-1, EN55015 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RPS-65-3.3, RPS-65-5, RPS-65-7.5, RPS-65-12, RPS-65-15, RPS-65-24 and RPS-65-48.

single output
output: 33 to 65,3W
input voltage: 80 to 264V AC (47 to 63Hz)
maximal input inrush current: 30A
leakage current: <100µA (touch)
no-load power: <0,1W
overload protection: 115 to 150%
withstand voltage I/P-O/P: 4000V AC
operating temperature: -30 to +70°C
weight: 110g
