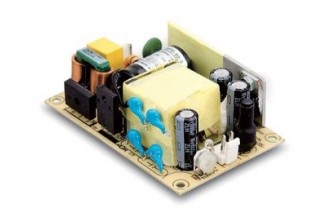

Mean Well power supply series RPS-30

Open frame type switching power supplies with 30W, a universal input, a low no-load power and PC pins for nylon crimp terminals. These devices are suitable for medical applications (2xMOPP) and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with EN60601-1. We offer the following types of this Mean Well series: RPS-30-3.3, RPS-30-5, RPS-30-7.5, RPS-30-12, RPS-30-15, RPS-30-24 and RPS-30-48.

single output
output: 19,8 to 30W
input voltage: 80 to 264V AC (47 to 63Hz)
maximal input inrush current: 60A
leakage current: <100µA
no-load power: <0,1W
overload protection: 115 to 150%
withstand voltage I/P-O/P: 4000V AC
operating temperature: -30 to +70°C
weight: 90g
