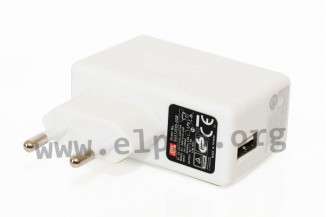

Mean Well plug-in power supply series SGA12E

Plug-in switching power supplies in a slim plastic housing with 12W, a europlug, energy efficiency Level VI, insulation class II, a universal input and a low no-load power. These devices have a USB connection, are protected against overload (auto recovery), overvoltage as well as short circuit and comply with EN62368-1, EN55032 class B, EN61000-3-2 class A as well as EN61000-3-3. We offer the type SGA12E05-USB of this Mean Well series.

• single output
• output: 12W
• input voltage: 90 to 264V AC (47 to 63Hz)
• maximal input inrush current: 60A
• no-load power: <0,075W
• cable length: 1m
• input plug: Euro
• output plug: 2,1x5,5mm coaxial
• operating temperature: -20 to +60°C
• weight: 100g
