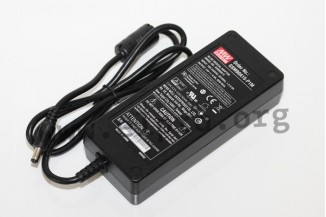

Mean Well desktop power supply series GSM90A

Desktop switching power supplies with 90W, insulation class I, a universal input, energy efficiency Level VI and an LED indicator for power on. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, overtemperature, short circuit as well as overvoltage. They have a service life of more than 130.000 hours and comply with EN60601-1, EN55011 Klasse B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: GSM90A12-P1M, GSM90A15-P1M, GSM90A19-P1M, GSM90A24-P1M and GSM90A48-P1M.

single output
output: 80 to 90W
input voltage: 80 to 264V AC (47 to 63Hz)
maximal input inrush current: 65A
no-load power: <0,15W
input plug: C14 (IEC320-C14)
output plug: 2,5x5,5mm
operating temperature: -30 to +70°C
weight: 450g
