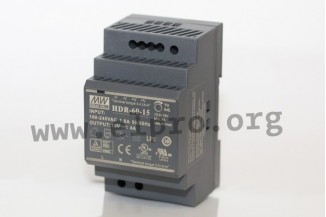

Mean Well DIN rail power supply series HDR-60

Switching power supplies in a slim housing (52,5mm width) with 60W, a universal input, insulation class II, an LED indicator for power on, a low no-load power and screw terminals (touch guard). These devices are suitable for DIN rail mounting and are protected against overload (auto recovery), overvoltage as well as short circuit. They have an adjustable DC output voltage as well as a fanless design and comply with UL/EN62368-1, EN61558-2-16, EN61558-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: HDR-60-5, HDR-60-12, HDR-60-15, HDR-60-24 and HDR-60-48.

single output
output: 32,5 to 60W
input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
maximal input inrush current: 60A
overload protection: 105 to 160%
withstand voltage I/P-O/P: 3000V AC
operating temperature: -30 to +70°C
weight: 190g

> More

Data Sheet
