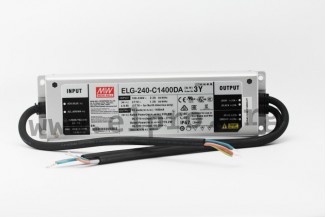

Mean Well LED driver series ELG-240-C

LED drivers in a metal case (IP67) with a constant current, a protective conductor PE (three wire primary cable) and 240W. These SELV compliant devices comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3, EN61547 as well as a 6kV surge immunity level and are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: ELG-240-C700DA-3Y, ELG-240-C1050DA-3Y, ELG-240-C1400DA-3Y, ELG-240-C1750DA-3Y and ELG-240-C2100DA-3Y.

single output
output: 239,4 to 241,5W
input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
maximal input inrush current: 75A
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -40 to +85°C
weight: 1220g
