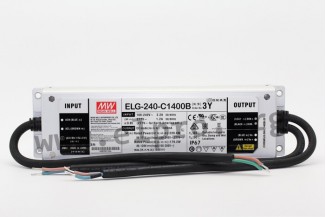

Mean Well LED driver series ELG-240-C

LED drivers in a metal case (IP67) with a constant current, 240W and a protective conductor PE (three wire primary cable). These SELV compliant devices are suitable for LED lighting applications, have a 3 in 1 dimming function (0 to 10V DC, PWM, 100kOhm potentiometer) through an executed control line and are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature. We offer the following types of this Mean Well series: ELG-240-C700B-3Y, ELG-240-C1050B-3Y, ELG-240-C1400B-3Y, ELG-240-C1750B-3Y and ELG-240-C2100B-3Y.

single output
output: 239,4 to 241,5W
input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
maximal input inrush current: 75A
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -40 to +85°C
weight: 1220g
