Mean Well LED driver series ELG-240

LED drivers in a metal housing (IP67) with a constant voltage, a constant current, a 6kV surge immunity level, a protective earth conductor PE and a programmable function. These devices are protected against ove...

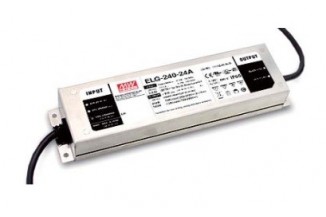

Mean Well LED driver series ELG-240

LED drivers in a metal housing (IP67) with a constant voltage, a constant current, a 6kV surge immunity level, a protective earth conductor PE and a programmable function. These devices are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit and comply with EN61347-2-13, EN61347-1, EN55015, EN61547, EN61000-3-2 class C as well as EN61000-3-3. They have a built-in smart timer dimming function as well as a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: ELG-240-24D2-3Y, ELG-240-36D2-3Y, ELG-240-42D2-3Y, ELG-240-48D2-3Y and ELG-240-54D2-3Y.

  • single output
  • output: 239,76 to 240,3W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 60A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 244x71x37,5mm
  • weight: 1220g
> More
Data Sheet
