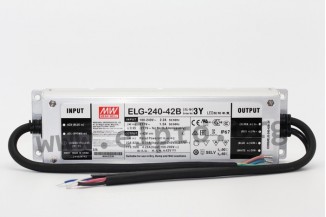

Mean Well LED driver series ELG-240

LED drivers in a metal housing (IP67) with a 3 in 1 dimming function (0 to 10V DC, PWM, 100kOhm potentiometer), a constant voltage, a constant current and a protective earth conductor PE. These devices are suitable for LED lighting applications and comply with EN55015, EN61347-1, EN61347-2-13, EN61000-3-2 class C, 6kV surge immunity level, EN61000-3-3 as well as EN61547. They are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and have a built-in active PFC function. We offer the following types of this Mean Well series: ELG-240-24B-3Y, ELG-240-36B-3Y, ELG-240-42B-3Y, ELG-240-48B-3Y and ELG-240-54B-3Y.

single output
output: 239,76 to 240,3W
input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
maximal input inrush current: 60A
no-load power: <0,5W
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -40 to +90°C
dimensions: 244x71x37,5mm
weight: 1220g
