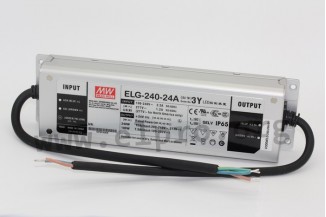

Mean Well LED driver series ELG-240

LED drivers in a metal housing (IP65) with a constant voltage, a constant current, a built-in potentiometer for adjusting the output voltage / current limitation and a protective earth conductor. These devices comply with EN61347-1, EN61347-2-13, 6kV surge immunity level, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. They are suitable for LED lighting applications and are not dimmable. We offer the following types of this Mean Well series: ELG-240-24A-3Y, ELG-240-36A-3Y, ELG-240-42A-3Y, ELG-240-48A-3Y and ELG-240-54A-3Y.

single output
output: 239,76 to 240,3W
input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
maximal input inrush current: 60A
no-load power: <0,5W
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -40 to +90°C
dimensions: 244x71x37,5mm
weight: 1220g
