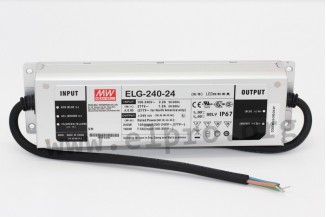

Mean Well LED driver series ELG-240

LED drivers in a metal housing (IP67) with a protective earth conductor PE, a constant voltage and a 6kV surge immunity level. These devices comply with EN55015, EN61000-3-2 class C, EN61000-3-3, EN61547, EN61347-1 as well as EN61347-2-13 and are suitable for LED lighting applications. They are not dimmable and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. We offer the follwing types of this Mean Well series: ELG-240-24-3Y, ELG-240-36-3Y, ELG-240-42-3Y, ELG-240-48-3Y and ELG-240-54-3Y.

single output
output: 239,76 to 240,3W
input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
maximal input inrush current: 60A
no-load power: <0,5W
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -40 to +90°C
dimensions: 244x71x37,5mm
weight: 1220g
