Standex-Meder SMD Reed Relays Series CRR

These miniature SMD reed relays with dimensions of 8.6x4.4x3.55mm are characterized by a very flat ceramic package. They are fully sealed and have a high insulation resistance up to 1014 Ohm. The different ...

Standex-Meder SMD Reed Relays Series CRR

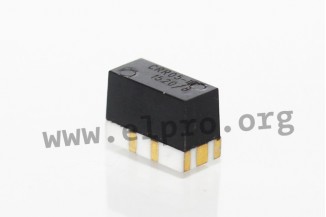

These miniature SMD reed relays with dimensions of 8.6x4.4x3.55mm are characterized by a very flat ceramic package. They are fully sealed and have a high insulation resistance up to 1014 Ohm. The different types have the contact forms 1A, 1B or 1AS (soldering ball). We are offering the types CRR 03-1A, CRR 03-1A S, CRR 03-1B, CRR 05-1A, CRR 05-1A S and CRR 05-1B by Standex Meder.

* configuration
CRR_-1A: SPST-NO
CRR-_1B: SPST-NC
* switching capacity, max.: 10W
* switching voltage, max.: 170V DC
* switching current, max.: 0.5A
* transport current, max.: 1.0A
* contact resistance: 200mΩ
* insulation resistance (coil/contacts): 10x1012Ω
* breakdown voltage, min. (coil/contacts): 210V DC
* operate time, max. (incl. bounce): 0.6ms
* release time, max.: 0.05ms
* vibration resistance: 20g
* temperatur range: -40 to +125°C
* soldering temperature/time: 260°C/5s

> More
Data Sheet
Showing 1 - 6 of 6 products
  • Product Stock Unit price Volume discounts
  • Standex-Meder
    Standex-Meder series CRR _-1A
    4,19 €
    107623 CRR 03-1A CRR03-1A CRR03-1A
    4,19 €
    Stock: 1025
  • Standex-Meder
    CRR 03-1A S
    6,09 €
    107624 CRR 03-1A S CRR03-1AS CRR03-1AS
    6,09 €
    Stock: 4
  • Standex-Meder
    Standex-Meder series CRR _-1B
    4,39 €
    107625 CRR 03-1B CRR03-1B CRR03-1B
    4,39 €
    Stock: 980
  • Standex-Meder
    CRR 05-1A
    4,19 €
    107626 CRR 05-1A CRR05-1A CRR05-1A
    4,19 €
    Stock: 1215
  • Standex-Meder
    Standex-Meder CRR series
    5,59 €
    107627 CRR 05-1A S CRR05-1AS CRR05-1AS
    5,59 €
    Stock: 685
  • Standex-Meder
    CRR 05-1B
    4,29 €
    107628 CRR 05-1B CRR05-1B CRR05-1B
    4,29 €
    Stock: 180
Showing 1 - 6 of 6 products
