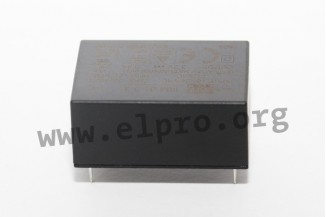

Mean Well power supply series IRM-01

Switching power supplies in an enclosed housing with 1W, a universal input, protection class II and a low no-load power. These devices are suitable for PCB mounting and are protected against overload, overvoltage as well as short circuit. They have a fanless design and comply with EN55032 class B as well as UL/EN62368-1. We offer the following types of this Mean Well series: IRM-01-3.3, IRM-01-5, IRM-01-9, IRM-01-12, IRM-01-15 and IRM-01-24.

single output
output: 1W
input voltage: 85 to 305V AC (47 to 63Hz), 120 to 430V DC
maximal input inrush current: 10A
no-load power: <0,075W
withstand voltage I/P-O/P: 3000V AC
operating temperature: -30 to +85°C
weight: 19g

> More

Data Sheet
