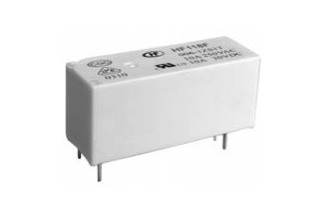

Hongfa PCB relays, 10A, 1 changeover contact, HF118F series

• SPDT
• rated current: 10 A
* miniature high power relay
• housing: 28.5x10.1x12.5 mm
* low height
* 5000 V AC surge withstand beweeen coil and contact
* min. 8 mm creepage distance
* reinforce insulation, meets VDE 0700, 0631
* class F, UL insu...

• SPDT
• rated current: 10 A
* miniature high power relay
• housing: 28.5x10.1x12.5 mm
* low height
* 5000 V AC surge withstand beweeen coil and contact
* min. 8 mm creepage distance
* reinforce insulation, meets VDE 0700, 0631
* class F, UL insulation system
• contact material: AgSnO2
• max. switching voltage: 125 V DC, 440 V AC
* 2500 VA / 300 W max. switching power
* insulation restistance, min.: 1000 MΩ
* 10/5 ms max. operate/release time
• testing voltage coil/contact ( 1 min.): 5000 V AC
• testing voltage open contacts ( 1 min.): 100 V AC
• mechanical lifetime, min.: 1x107 operations
• operating temperature: -40 to +85 °C
• weight: approx. 8 g
