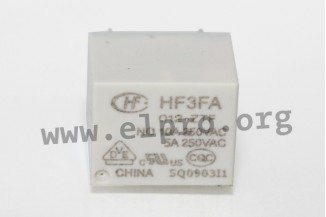

Hongfa PCB relays, 10A, 1 changeover contact, HF3FA series

• SPDT
• rated current: 10 A
* subminiature high power relay
• housing: 19x15.2x15.5 mm
* 2500 V AC surge withstand beweeen coil and contact
* flammability class according to UL94 V-0
• contact material: AgSnO2
• max. switching voltage: 28 V DC, 2...

• SPDT
• rated current: 10 A
* subminiature high power relay
• housing: 19x15.2x15.5 mm
* 2500 V AC surge withstand beweeen coil and contact
* flammability class according to UL94 V-0
• contact material: AgSnO2
• max. switching voltage: 28 V DC, 277 V AC
* 2700 VA / 280 W max. switching power
* insulation restistance, min.: 100 MΩ
* 10/5 ms max. operate/release time
• testing voltage coil/contact ( 1 min.): 2500 V AC
• testing voltage open contacts ( 1 min.): 750 V AC
• mechanical lifetime, min.: 1x107 operations
• electrical lifetime, min.: 5x104 operations
• operating temperature: -40 to +85 °C
• weight: approx. 7 g
