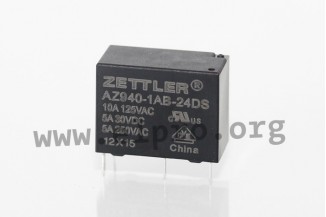

Zettler PCB relays, 10A, 1 normally open contact, AZ940 series

• SPST
• rated current: 10 A
• housing: 20.5x10.2x15.7 mm
* miniatur power relays
* dielectric strength: 4 kV
* sensitive coil
• contactmaterial: AgNi
• max. switching voltage: 150V DC, 400 V AC
• max. switching power: 150 W, 2770 VA
• operate/rele...

• SPST
• rated current: 10 A
• housing: 20.5x10.2x15.7 mm
* miniatur power relays
* dielectric strength: 4 kV
* sensitive coil
• contactmaterial: AgNi
• max. switching voltage: 150V DC, 400 V AC
• max. switching power: 150 W, 2770 VA
• operate/release time: 8/5 ms
• testing voltage coil/contact : 4000 VRMS
• testing voltage open contacts: 1000 VRMS
• mechanical lifetime, min (10 A / 250 V): 1x107 operations
• electrical lifetime, min : 1x105 operations
• operating temperature: -40 to 70 °C
• max. solder temperature: 270 °C (5 s)
• weight: approx. 7 g

> More
Data Sheet
Showing 1 - 2 of 2 products
  • Product Stock Unit price Volume discounts
  • Zettler electronics
    AZ940-1AB-12DS
    0,689 €
    106924 AZ940-1AB-12DS AZ940-1AB-12DS
    0,689 €

    More
    Stock: 1600
  • Zettler electronics
    AZ940-1AB-24DS
    1,08 €
    106925 AZ940-1AB-24DS AZ940-1AB-24DS
    1,08 €

    More
    Stock: 424
Showing 1 - 2 of 2 products
