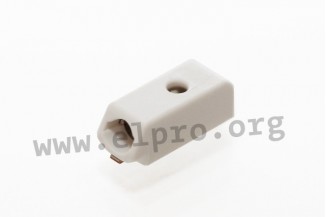

Wago SMD spring terminal block series 2059

• screwless spring/clamp connection
* 1-, 2- and 3-pole
* CAGE CLAMP® connection
* direct mating of solid conductors
* with actuating pusher
* simple release by actuating tool
* height of only 2.7 mm
* pitc...

Wago SMD spring terminal block series 2059

• screwless spring/clamp connection
* 1-, 2- and 3-pole
* CAGE CLAMP® connection
* direct mating of solid conductors
* with actuating pusher
* simple release by actuating tool
* height of only 2.7 mm
* pitch: 3 mm
• rated voltage (EN 60664-1): 160V
• rated cross section single stranded wire: 0.14 to 0.34 mm²
• stripped length: 4 to 5.5 mm
• insulating material: PPA-GF
• temperature range: -60 to +105°C
• flammability class: UL94V-0
• colour: grey

suitable actuating tool must be ordered separately

> More
Data Sheet
