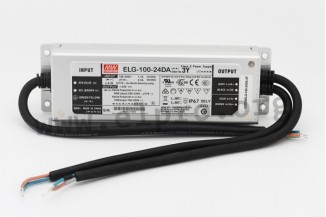

Mean Well LED driver series ELG-100

LED drivers in a metal housing (IP67) with a constant current / constant voltage (mixed mode), 100W and a DALI interface. These devices are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3, EN61547 as well as 6kV surge immunity level. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: ELG-100-24DA-3Y, ELG-100-36DA-3Y, ELG-100-42DA-3Y, ELG-100-48DA-3Y and ELG-100-54DA-3Y.

single output
output: 95,76 to 96,12W
input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
maximal input inrush current: 60A
no-laod power: <0,5W
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -40 to +90°C
weight: 850g
