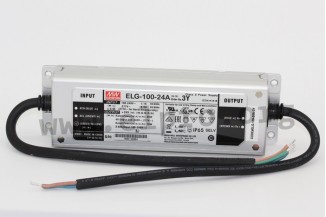

Mean Well LED driver series ELG-100

LED drivers in a metal housing (IP65) with a constant current / constant voltage (mixed mode), a protective earth conductor PE and 100W. These devices are SELV compliant and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 Class C, EN61000-3-3 as well as EN61547. They are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and have a built-in active PFC function as well as a built-in potentiometer for adjusting the output voltage / current limitation. We offer the following types of this Mean Well series: ELG-100-24A-3Y, ELG-100-36A-3Y, ELG-100-42A-3Y, ELG-100-48A-3Y and ELG-100-54A-3Y.

single output
output: 95,76 to 96,12W
input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
maximal input inrush current: 60A
no-load power: <0,5W
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -40 to +90°C
dimensions: 199x63x35,5mm
weight: 850g
