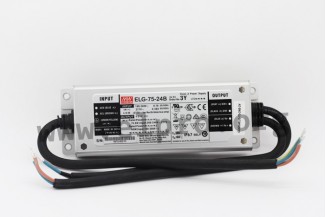

Mean Well LED driver series ELG-75

LED drivers in a metal housing (IP67) with a constant current / constant voltage (mixed mode), 75W and a 3 in 1 dimming function (0 to 10V DC, PWM, potentiometer). These devices comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3, EN61547 and 6kV Surge Immunity Level and are protected against overload (auto recovery), short circuit, overvoltage as well as overtemperature. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: ELG-75-12B-3Y, ELG-75-24B-3Y, ELG-75-36B-3Y, ELG-75-42B-3Y and ELG-75-48B-3Y.

single output
output: 60 to 76,8W
input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
maximal input inrush current: 50A
no-load power: <0,5W
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -40 to +85°C
dimensions: 180x63x35,5mm
weight: 800g
