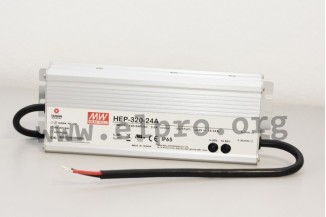

Mean Well power supply series HEP-320

Switching power supplies in an enclosed aluminium housing with 320W, screw terminals, a universal input and a surge immunity level of 6kV. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for harsh environments and comply with EN61000-3-2, EN61000-3-3, EN55022 as well as EN60950-1. We offer the following types of this Mean Well series: HEP-320-12A, HEP-320-15A, HEP-320-24A, HEP-320-36A, HEP-320-48A and HEP-320-54A.

single output
output: 264 to 321,6W
input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
maximal input inrush current: 70A
leakage current: <0,75mA
overcurrent protection: 105 to 125%
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -55 to +70°C
weight: 1880g
