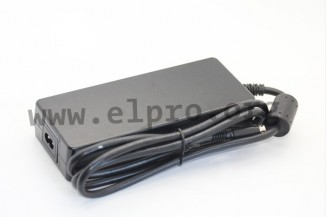

Mean Well desktop power supply series GSM160B

Desktop switching power supplies with 160W, insulation class II, a universal input, energy efficiency Level VI, an LED indicator for power on and a low no-load power (<0,15W). These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, overtemperature, short circuit as well as overvoltage. They have a service life of more than 110.000 hours and comply with EN60601-1, EN60601-1-11, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: GSM160B12-R7B, GSM160B15-R7B, GSM160B20-R7B, GSM160B24-R7B and GSM160B48-R7B.

single output
output: 138 to 160W
input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
maximal input inrush current: 110A
no-load power: <0,15W
input plug: C8 (IEC320-C8)
output plug: R7B 4-pole
operating temperature: -30 to +70°C
weight: 660g
