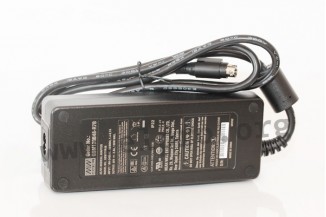

Mean Well desktop power supply series GSM120B

Desktop switching power supplies with 120W, a universal input, insulation class II, energy efficiency Level VI and a low no-load power (<0,15W). These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, overtemperature, short circuit as well as overvoltage. They have an LED indicator for power on and comply with EN60601-1, EN60601-1-11, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: GSM120B12-R7B, GSM120B15-R7B, GSM120B20-R7B, GSM120B24-R7B and GSM120B48-R7B.

single output
output: 102 to 120W
input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
maximal input inrush current: 70A
input plug: C8 (IEC320-C8)
output plug: R7B 4-polig
operating temperature: -30 to +70°C
weight: 600g

> More

Data Sheet
