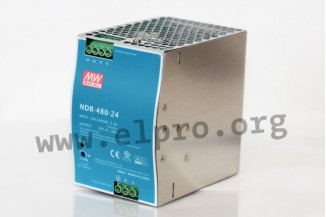

Mean Well DIN rail power supply series NDR-480

Switching power supplies with a capacity of 480W, screw terminals (touch guard), universal input and an LED indicator are available for DIN rail mounting from Mean Well. These devices feature overload, overvoltage and short circuit protection features as well as a fanless design. They comply with EN50082-2, EN61000-6-2, EN62368-1, EN55032 standards along with class B of both EN61204-3 and EN61000-3-2/EN61000/-33 standards. The Mean Well DIN rail switching power supplies provide reliable performance in various applications while ensuring compliance to safety standards such as the aforementioned ones. We offer the following types of this Mean Well series: NDR-480-24 and NDR-480-48.

single output
output: 480W
input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
maximal input inrush current: 35A
leakage current: <2mA
output voltage adjustment: +15%
overload protection: 105 to 130%
withstand voltage I/P-O/P: 3000V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 500V AC
operating temperature: -20 to +70°C
weight: 1500g
